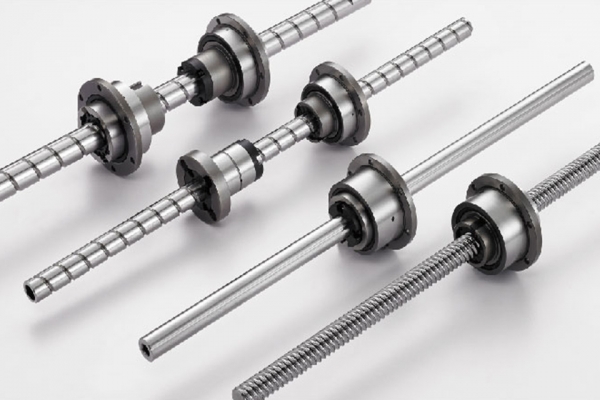

TBI motion rotary line featured 40° angular (Back to back) contact angle within in the bearing. It enables self-aligning with minor mounting error and bears higher axial load to achieve better accuracy. Custom preload can be applied to reduce clearance and increase high rigidity.

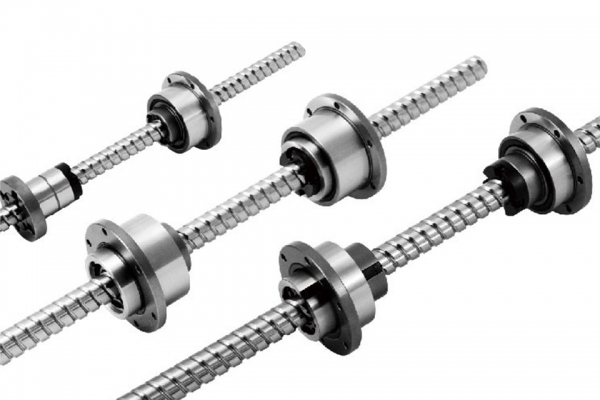

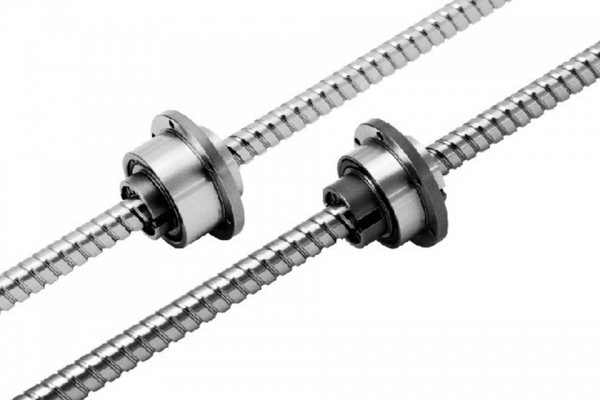

High Speed / Smooth Running PerformanceThe rotary line uses TBI motion super lead screw to maintain high speed with smoothness in performance.
Noise ReductionThe precision ground screw thread and spline groove make sure the ball bearing travel fluently during operations which reduce the skidding, friction and noise level and thus increase the service performance and life.
Plug and Run / CompactnessTBI motion rotary line features a one-piece compact and easy mounting design.

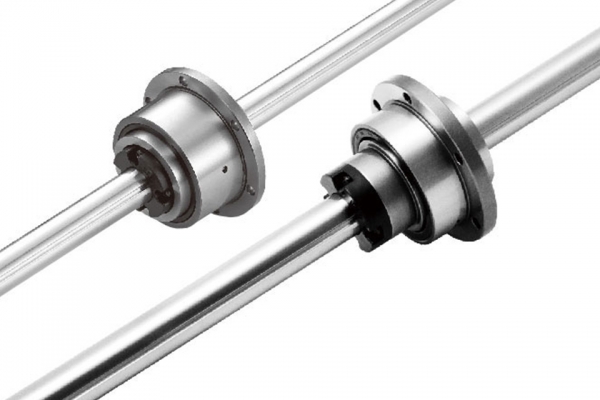

Spline AlternativeBall spline offers customized end journal according to print. Hollow spline is available on request for special operation environment in ventilation, piping on weight reduction.
